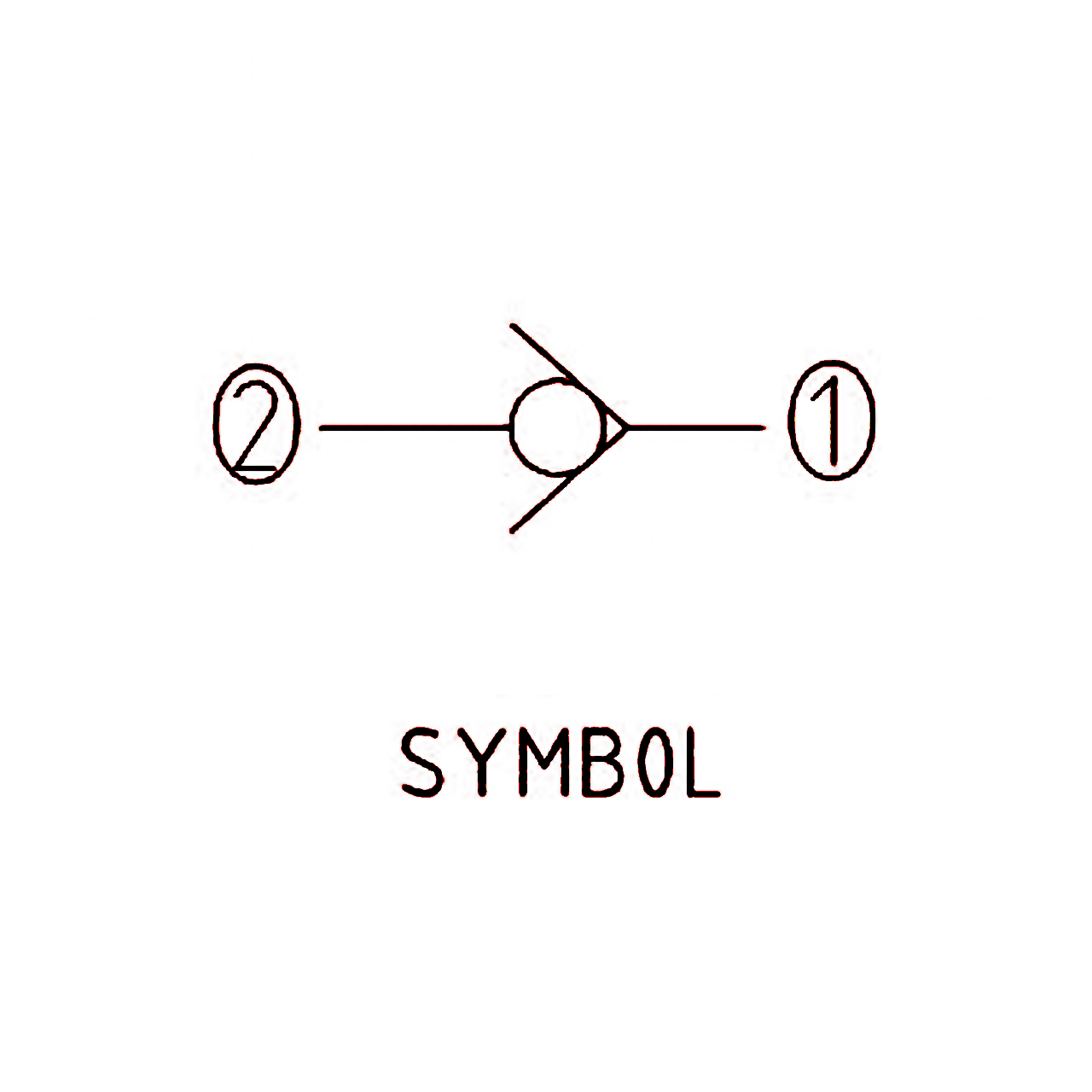

当①口压力超过开启压力，油液由①流向②,反方向②到①关闭

Pressure at 1over the cracking pressureallows free flow from 1to 2 Flow in the opposite direction from 2 to 1 is blocked

1.额定压力(Rated pressure):315bar

2.额定流量(Rated flow):80L/min

3.开启压力(Cracking pressure):0.3bar

4.泄漏量(Internalleakage):0.07drops/min

5.油液清洁度(Cleaning code):20/18/15(NAS9)

6.工作温度(Temperaturerange):-20~+100℃

7.安装扭矩(Installation torque):43~48Nm
