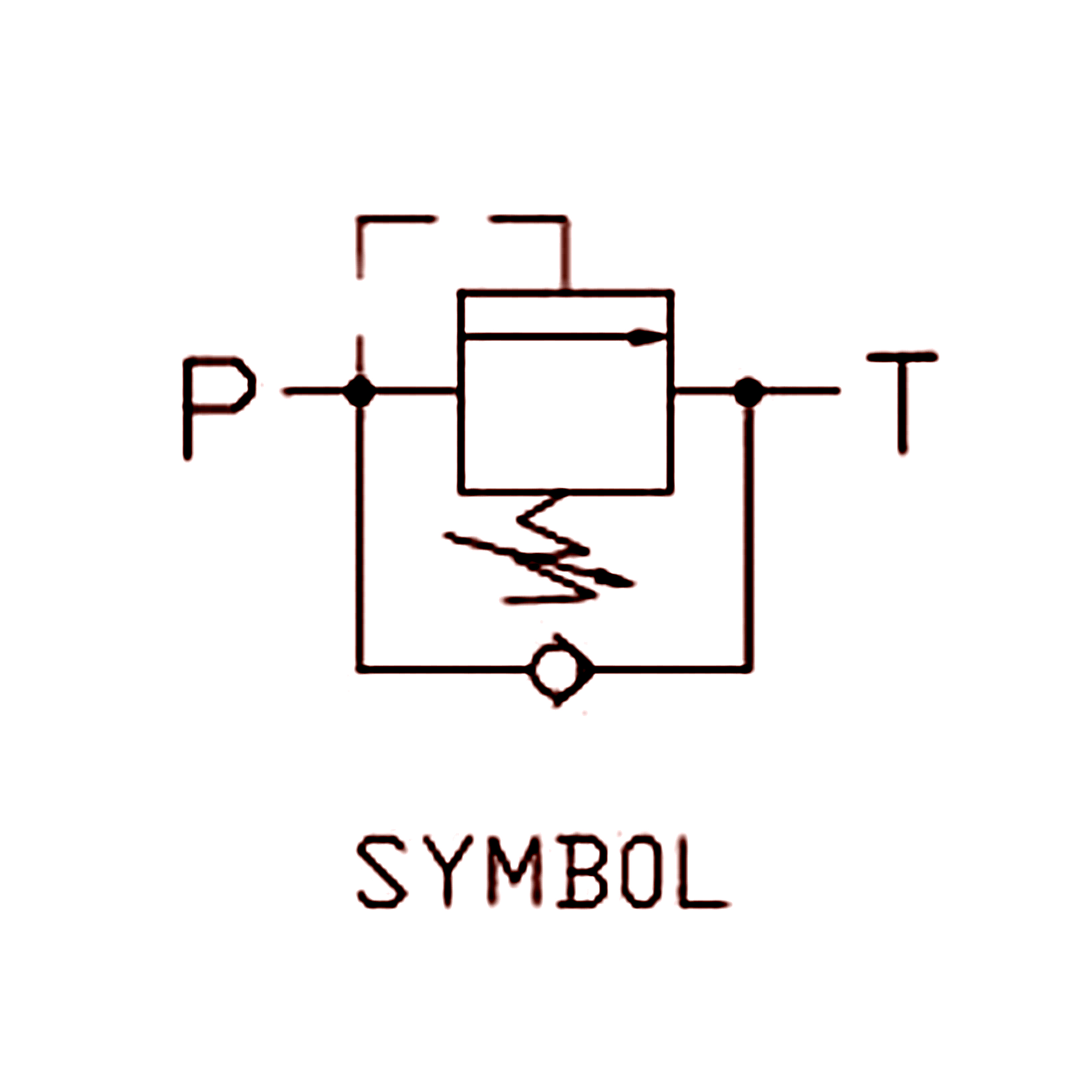

阀的额定压力是通过调节弹簧力实现，当P口压力达到设定压力后，阀被打开，P到T开始溢流;反方向，从T到P口可以很低的压力打开。该阀反应灵敏、内泄漏小。

The rated pressure of the valve is achieved byadjusting the spring force and allows free flowfrom P toT while the pressure at P reaches thevalve setting;In the opposite direction free flowfrom T to P at very low pressure. The valveoffers quick response and low internal leakage.

1.额定压力(Rated pressure):200bar

2.额定流量(Rated flow):10L/min

3.开启率(Cracking Rate) ≥90%

4.闭合率(Closing Rate)≥86%

5.补油开启压力(Oil make-upCracking Pressure):0.05bar

6.内泄漏 (Internal Leakage)≤10ml/min at 150bar

7.油液清洁度(CleaningCode):20/18/15(NAS9)

8.工作温度(Temperaturerange):-20~+100℃

9.每转压力变化(Pressure change Per Turn):37.5bar

10.安装扭矩(Installation Torque):35~40Nm

11.锁紧扭矩(Nut Tightening Torque):30~36Nm
