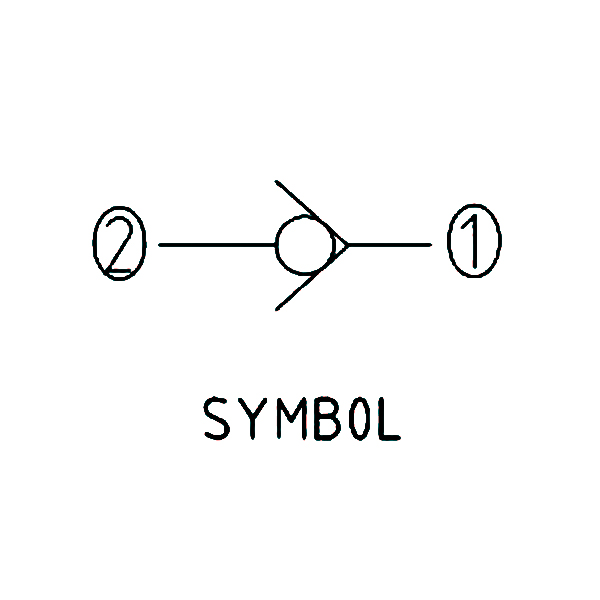

当①口压力超过开启压力，油液由①流向②，反方向②到①关闭

Pressure at 1 pool over the cracking pressure allows free

flow from 1pool to 2 pool.Flow in the opposite direction

from 2 pool to 1 pool is blocked.

技术参数：

1.额定压力(Rated pressure):315bar

2.额定流量(Rated flow):150L/min

3.开启压力(Cracking pressure):2.5bar

4.泄漏量(Internal leakage):2 drops/min

5.油液清洁度(Cleaning code):20/18/15(NAS9)

6.工作温度(Temperature range):-20~+100℃

7.安装扭矩(Installation torque):38~43Nm
