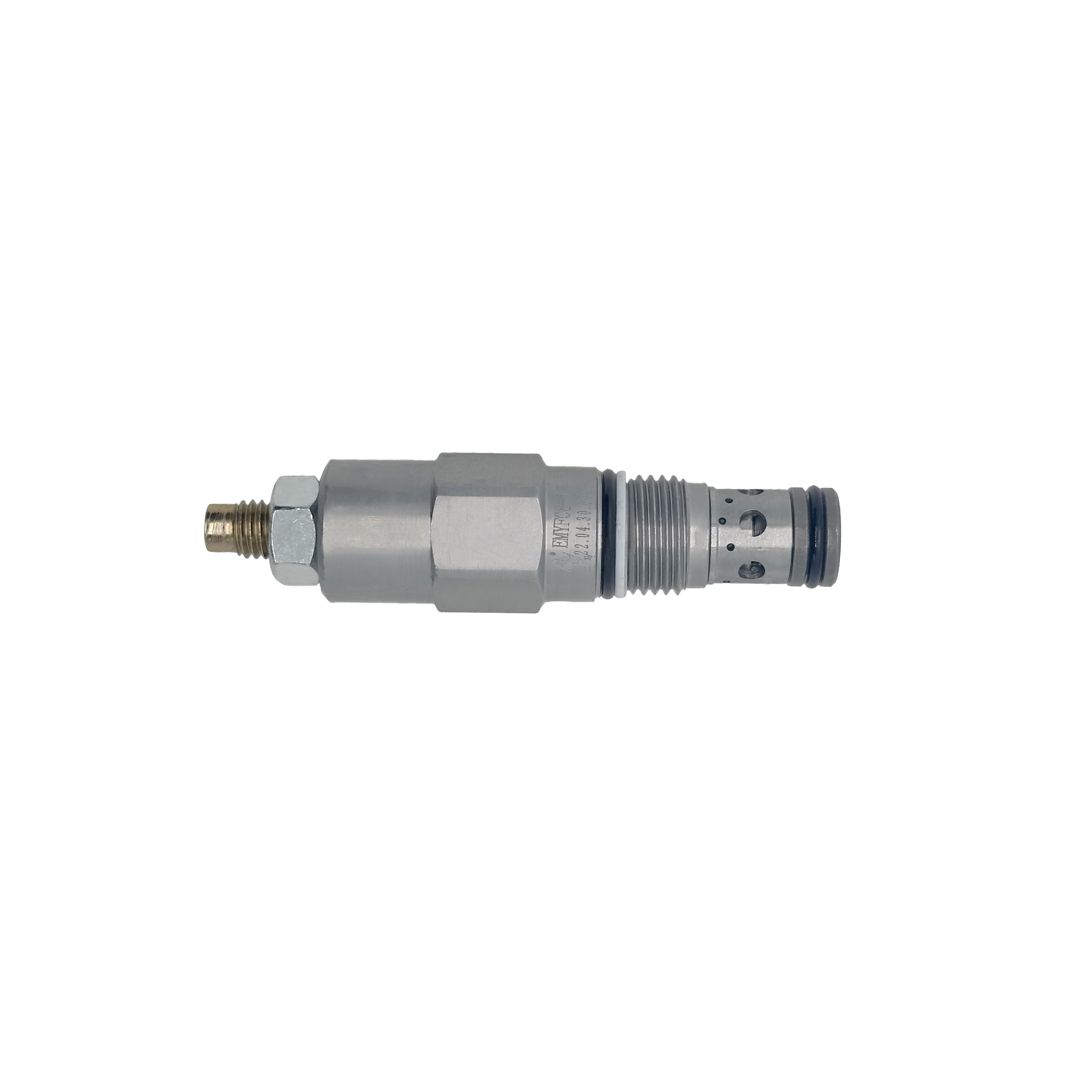

技术参数 Specifications
1.额定压力(Rated pressure):200bar
2.额定流量(Rated flow):5L/min
3.开启率(Cracking Rate)≥88%
4.闭合率(Closing Rate)≥85%
5.内泄漏(Internal leakage) ≤10ml/min at 150bar
6.油液清洁度(Cleaning code):20/18/15(NAS9)
7.工作温度(Temperature range):-20~+100℃
8.每转压力变化(Pr...

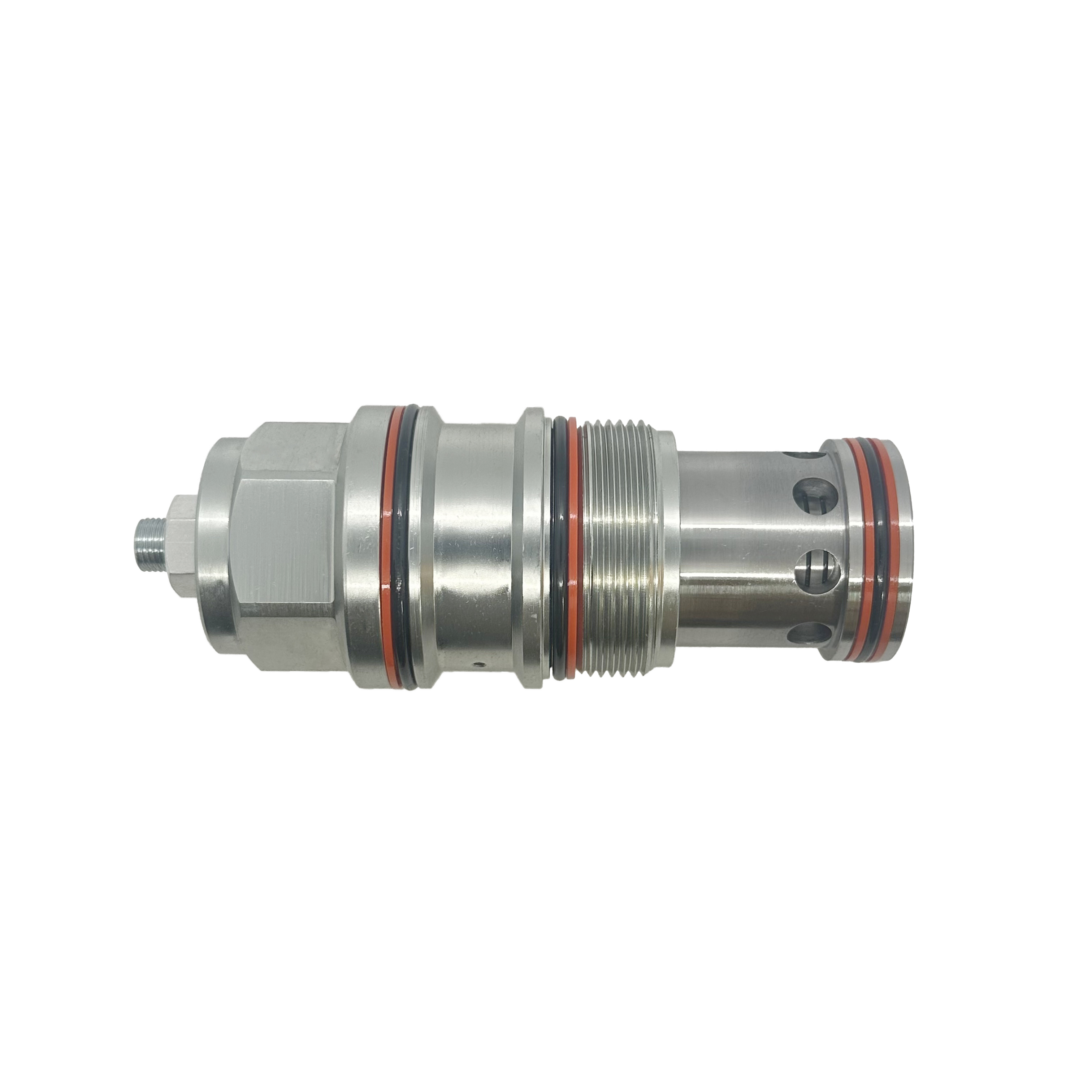

技术参数 Specifications
1.额定压力(Rated pressure):276bar
2.额定流量(Rated flow):240L/min
3.动态信号(Dynamic signal):7.6bar
4.安全阀设定压力(safety valve set pressure):172bar
5.工作温度(Temperature range):-20~+100℃
6.油液清洁度(Cleaning Code):20/18/15(NAS9)
7.阀块材料(Body Material):HT-300
8....

技术参数 Specifications
1.最高压力(Pressure Max):210bar
2.额定流量(Rated flow):10L/min
3.泄漏量(Internal leakage):≤5 drops/min
4.油液清洁度(Cleaning code):20/18/15(NAS9)
5.工作温度(Temperature range):-20~+100℃
6.安装扭矩(Installation torque):33~38Nm

技术参数 Specifications
1.额定压力(Rated pressure):70bar
2.额定流量(Rated flow):10L/min
3.开启率(Cracking Rate)≥90%
4.闭合率(Closing Rate)≥86%
5.内泄漏(Internal leakage)≤10ml/min at 52.5 bar
6.油液清洁度(Cleaning code):20/18/15(NAS9)
7.工作温度(Temperature range):-20~+100℃
8.每转压力变化(P...

技术参数 Specifications
1.额定压力(Rated pressure):315bar
2.额定流量(Rated flow):150L/min
3.开启压力(Cracking pressure):2.5bar
4.泄漏量(Internal leakage):2 drops/min
5.油液清洁度(Cleaning code):20/18/15(NAS9)
6.工作温度(Temperature range):-20~+100℃
7.安装扭矩(Installation torque):38~43Nm
