技术参数 Specifications
1.额定压力(Rated pressure):150bar
2.额定流量(Rated flow):100L/min
3.开启率(Cracking Rate) >90%
4.闭合率(Closing Rate)>85%
5.油液清洁度(Cleaning code):20/18/15(NAS9)
6.工作温度(Temperature range):-20~+100℃
7.每转压力变化(Pressure change per turn):170ban
8.安装扭矩(Installation Torque):40~45Nm
9.锁紧扭矩(Nut Tightening Torque):23~28Nm
|
工作原理 DESCRIPTION |
技术参数 Specifications |
|
当P口压力达到设定压力后，先导阀芯首先被打开，由此产生的 压差使得主阀芯打开，P到T实现溢流。该类型的阀反向可以承受 一定的背压,启闭率较高，适用于高压力、大流量的液压系统 When the pressure at "P" reaches the valve setting ,the pilotspool starts to open , Next the main spool opening because of the pressure drop between inside and outside of main spool,Realize overflow from P to T.This type of valve can withstand a certain amount of back pressure,has high opening and closing rate Suitable for the hydraulic system of high pressure and large flow.
|
1.额定压力(Rated pressure):150bar
5.油液清洁度(Cleaning code):20/18/15(NAS9)
|
|
机能符号
|
 |
|

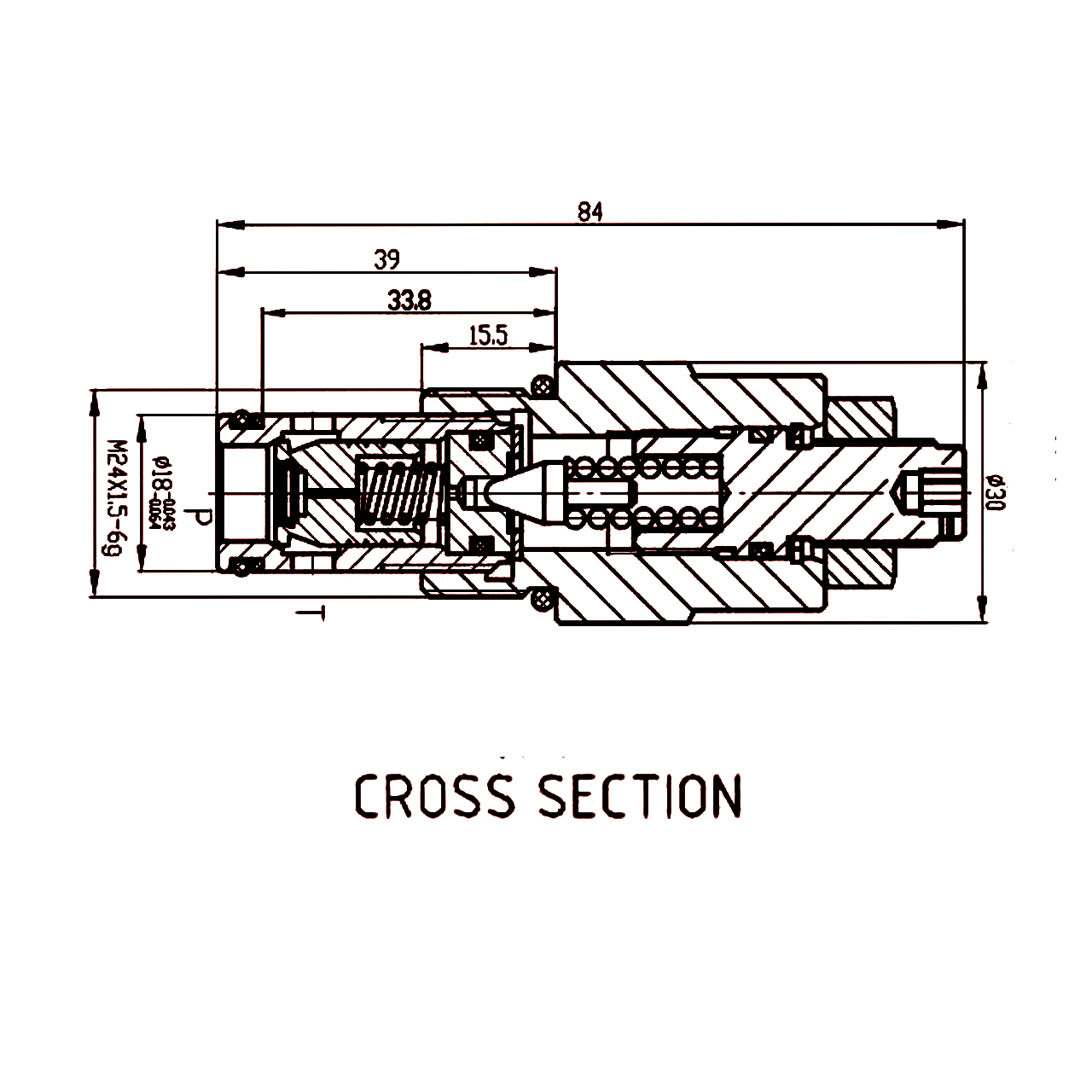

剖视图
|
 |
|

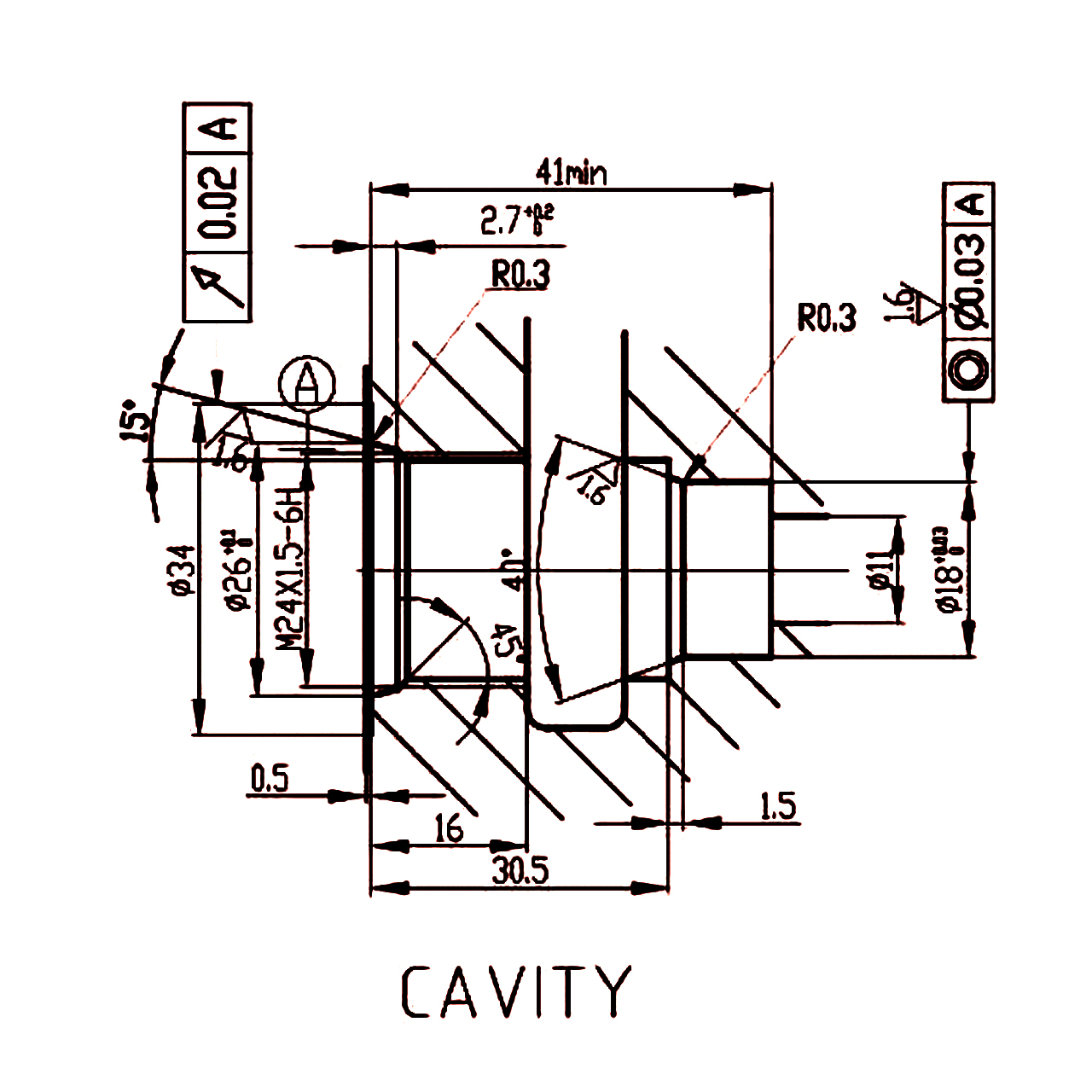

插孔
|
 |
|

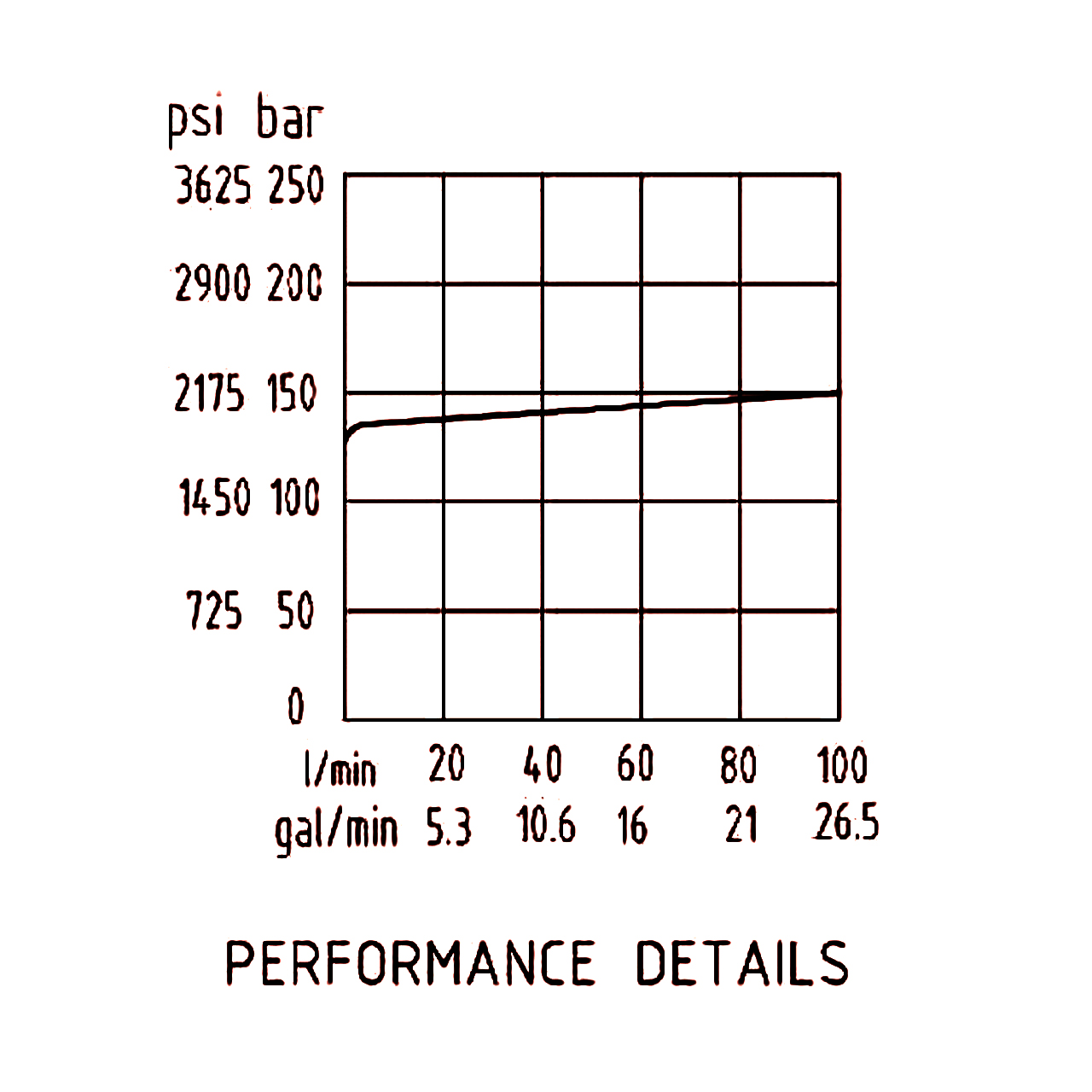

压力流量曲线
|
 |
