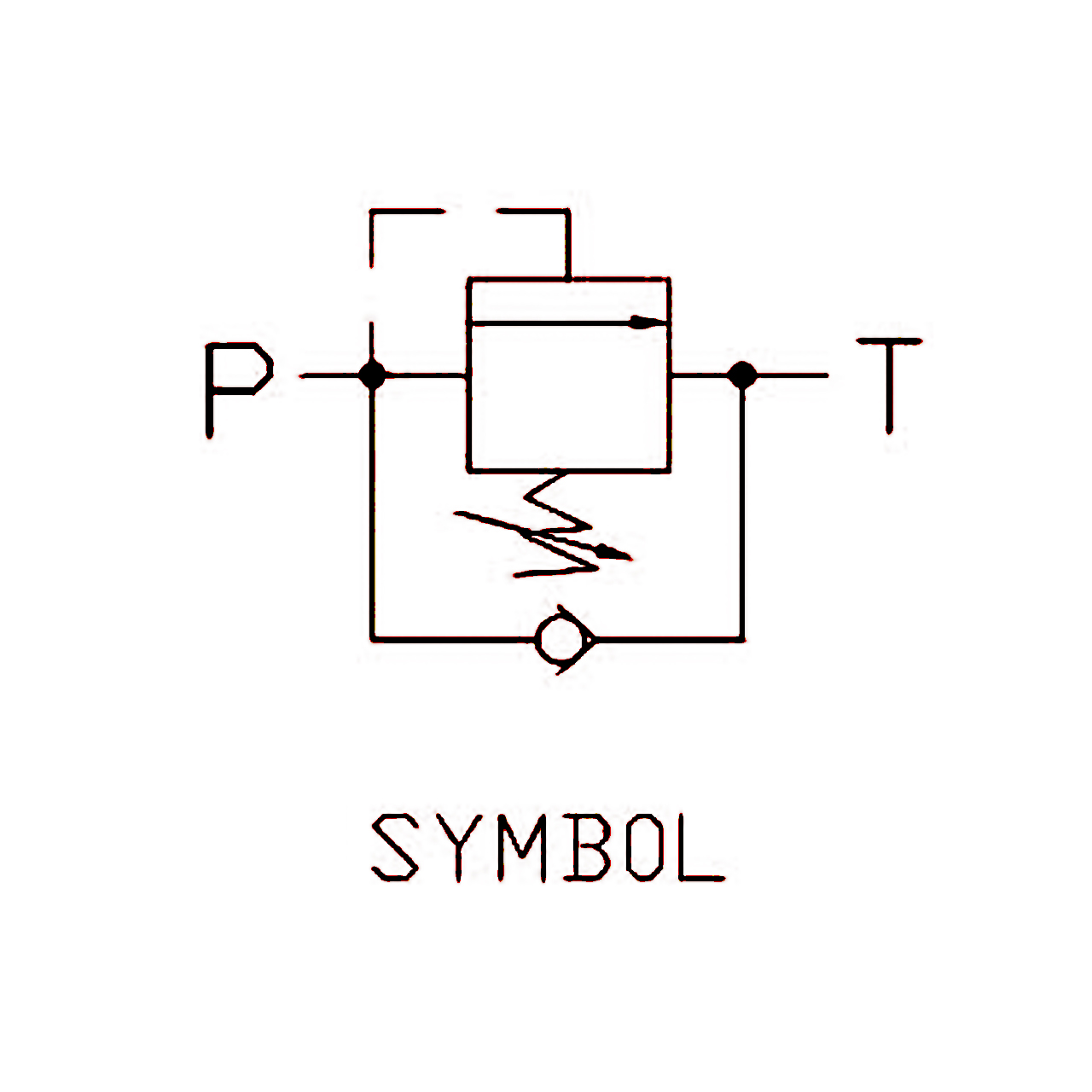

阀的额定压力是通过调节弹簧力实现，当P口压力达到设定

压力后，阀被打开，P到T开始溢流;反方向，从T到P可以很

低的压力打开。该阀反应灵敏、内泄漏小

The rated pressure of the valve is achieved by adjusting

the spring force and allows free flow from P to T while

the pressure at P reaches the valve setting;In the opposite

direction free flow from T to P at very low pressure. The

valve offers quick response and low internal leakage.

1.额定压力(Rated pressure):300bar

2.额定流量(Rated flow):40L/min

3.开启率(Cracking Rate)>90%

4.闭合率(Closing Rate)>86%

5.补油开启压力(Oil replenishment Cracking Pressure):0.4bar

6.内泄漏(Internal Leakage) <5ml/min at 225bar

7.油液清洁度(Cleaning Code):20/18/15(NAS9)

8.工作温度(Temperature range):-20~+100℃

9.安装扭矩(Installation Torque):40~45Nm
