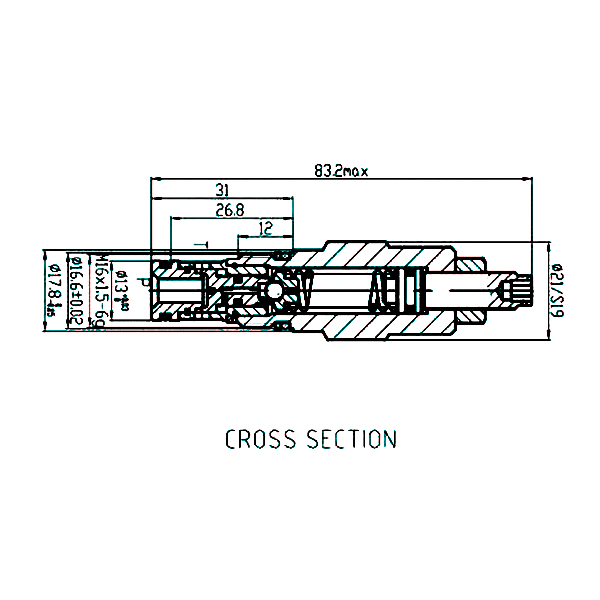

当P口压力上升到一定水平，由于阀芯内外的面积差使得该阀芯相当于阀座被打开，P到T开始溢流。该类型的阀反应灵敏，内泄漏小，相对于标准直动式溢流阀压降比较小，适用于较大流量场合

When the pressure at”p”rises a certain level.Due to the area difference between the inside and outside of the spool.It is opened relative to the valve seat, Starting to overflow from p to T.This type of valve have fast response and low internal leakage,Have a lower pressure drop than the standard directing acting relief valves, Suitable for the larger flow situations.

1.额定压力(Rated pressure):18bar

2.额定流量(Rated flow):40L/min

3.开启率(Cracking Rate) ≥38%

4.闭合率(Closing Rate)≥33%

5.内泄漏 (internal Leakage)≤10ml/min at 126 bar

6.油液清洁度(Cleaning code):20/18/15(NAS9)

7.工作温度(Temperature range):-20~+100℃

8.每转压力变化(Pressure change per turn):475bar

9.安装扭矩(Installation Torque):30~35Nm

10.锁紧扭矩(Nut Tightening Torque):10~12Nm
