技术参数 Specifications
1.额定压力(Rated pressure):315bar
2.额定流量(Rated flow):150L/min
3.开启压力(Cracking pressure):1 bar
4.泄漏量(Internal leakage):2 drops/min
5.油液清洁度(Cleaning code):20/18/15(NAS9)
6.工作温度(Temperature range):-20~+100℃
7.安装扭矩(Installation torque):50~55Nm
|
工作原理 DESCRIPTION |
技术参数 Specifications |
|
当②口压力超过开启压力，油液由②流向①反方向①到②关闭。
Pressure at 2 pool over the cracking pressure allows free flow from 2 pool to 1 pool Flow in the opposite direction from 1pool to 2 pool is blocked.
|
1.额定压力(Rated pressure):315bar
2.额定流量(Rated flow):150L/min
3.开启压力(Cracking pressure):1 bar
4.泄漏量(Internal leakage):2 drops/min
5.油液清洁度(Cleaning code):20/18/15(NAS9)
6.工作温度(Temperature range):-20~+100℃
7.安装扭矩(Installation torque):50~55Nm
|
 |
 |

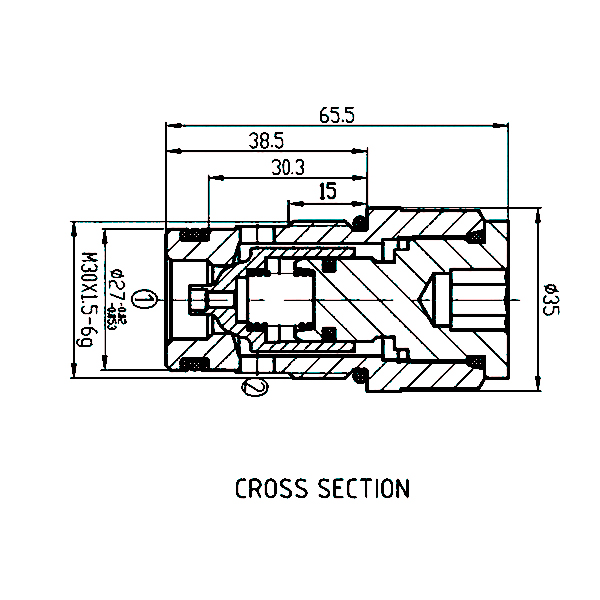

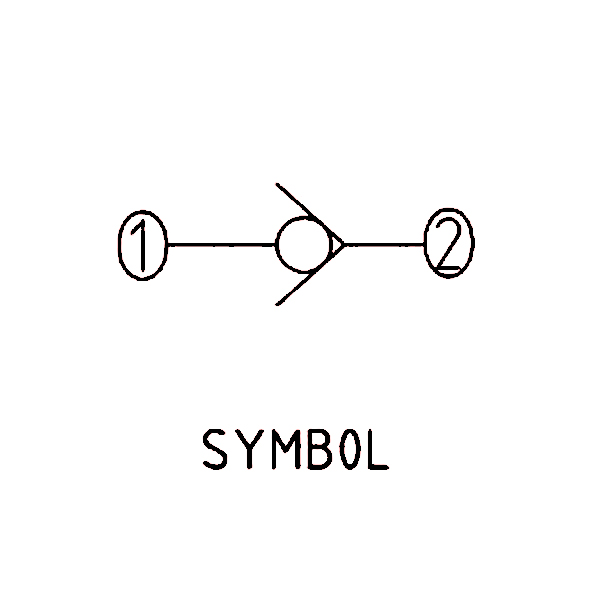

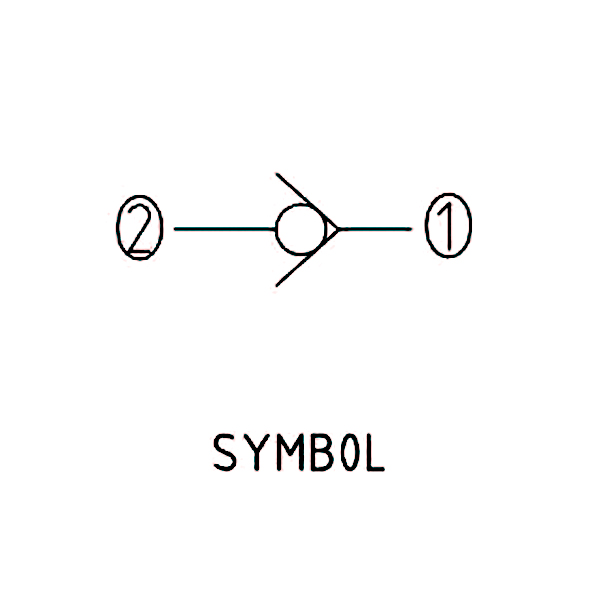

| 机能符号 SYMBOL | 剖视图 CROSS SECTION |
 |
 |

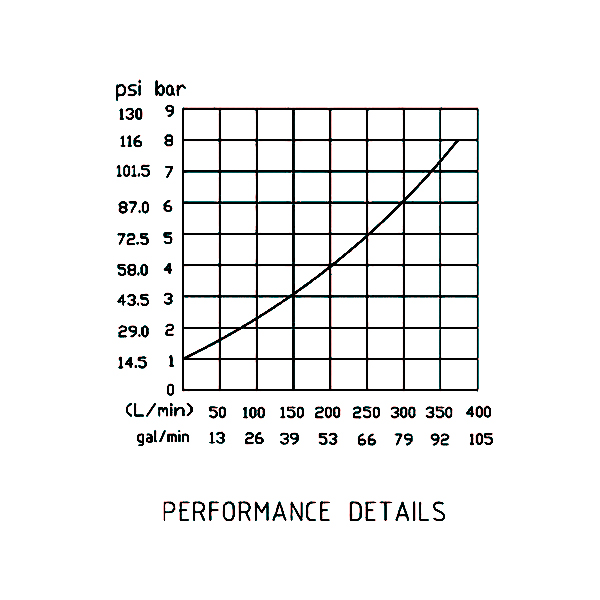

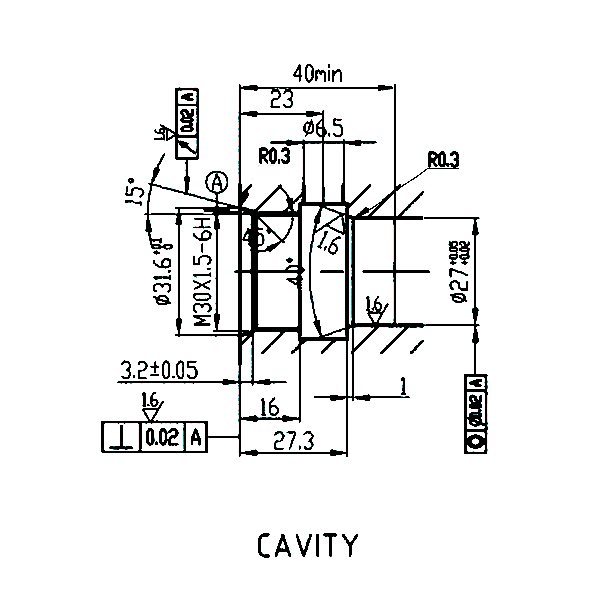

| 插孔 CAVITY | 压力流量曲线 Performance Details |
