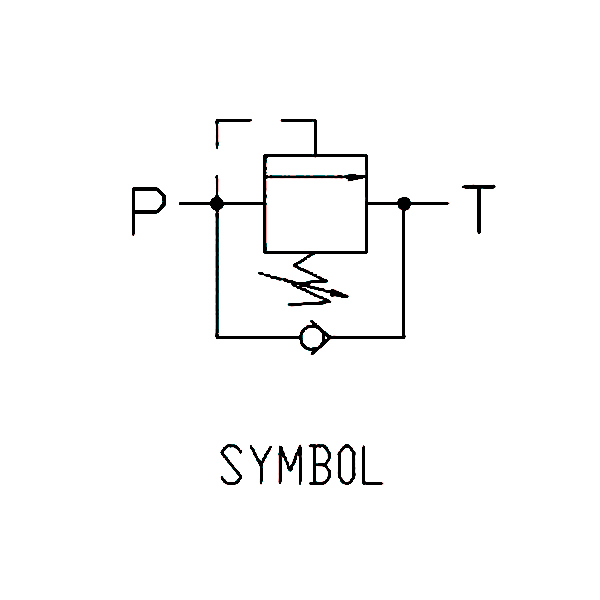

阀的额定压力是通过调节弹簧力实现，当P口压力达到设定压力后，阀被打开，P到T开始溢流;反方向，从T到P可以很低的压力打开。该阀反应灵敏、内泄漏小。

The rated pressure of the valve is achieved by adjusting the spring force and allows free flow from P to T while the pressure at P reaches the valve setting; In the opposite direction free flow from T to P at very low pressure. The valve offers quick response and low internal leakage.

1.额定压力(Rated pressure):83bar

2.额定流量(Rated flow):40L/min

3.开启率(Cracking Rate)≥85%

4.闭合率(Closing Rate)≥80%

5.补油开启压力(Oil Make-up Cracking Pressure):0.1bar

6.内泄漏(Internal Leakage) ≤5 ml/min at 62 bar

7.油液清洁度(Cleaning Code):20/18/15(NAS9)

8.工作温度(Temperature range):-20~+100℃

9.安装扭矩(Installation Torque):42~47Nm

10.锁紧扭矩(Nut Tightening Torque):38~43Nm
