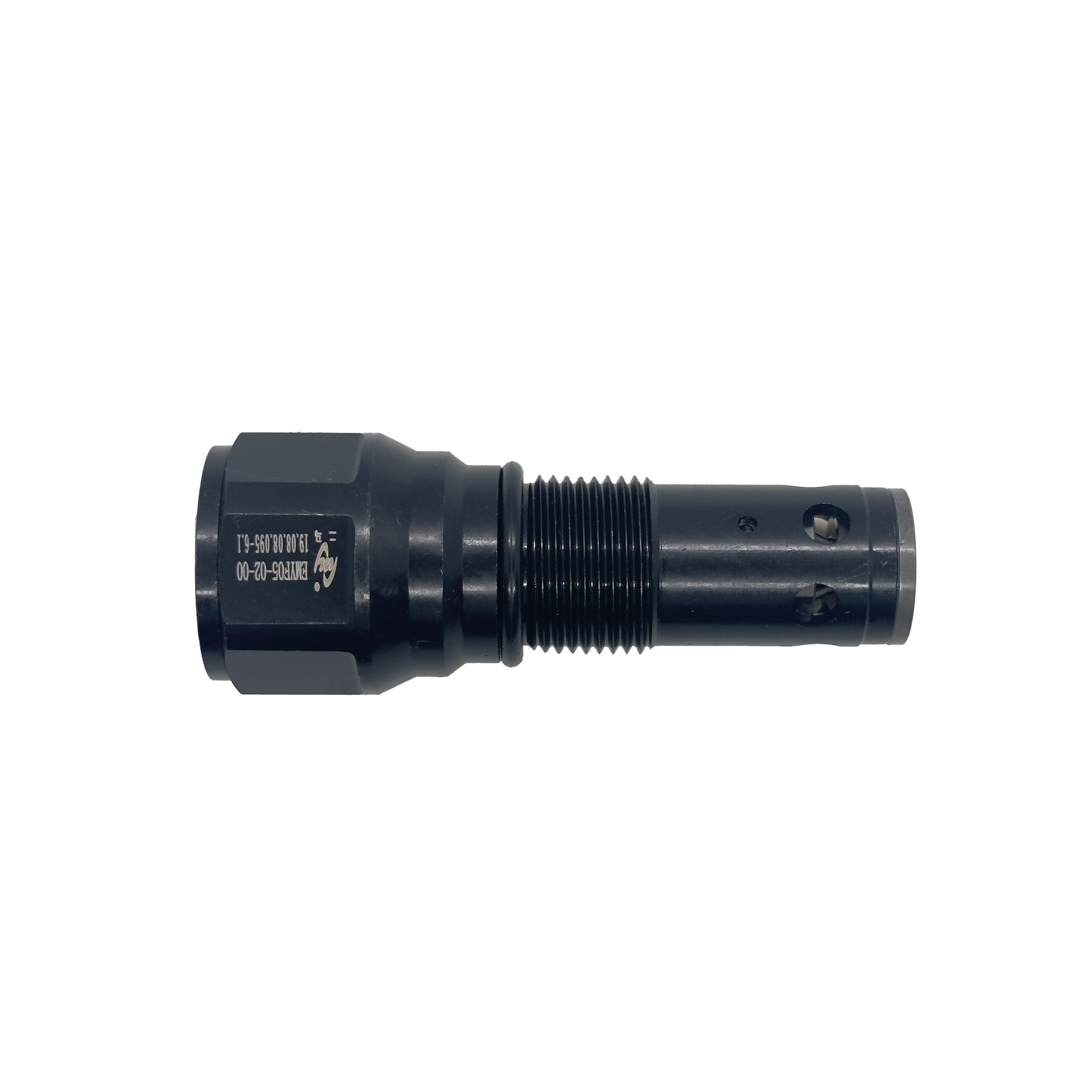

EMYF05-02 缓冲溢流阀 Soft impact relief valves
技术参数 Specifications更多 +
1.额定压力(Rated pressure):350bar
2.额定流量(Rated flow):60L/min
3.开启率(Cracking Rate) ≥85%
4.闭合率(Closing Rate)≥80%
5.内泄漏(Internal leakage)≤100ml/min at 262.5 bar
6.油液清洁度(Cleaning code):20/18/15(NAS9)
7.工作温度(Temperature range):-20~+100℃
8.安装扭矩(Installation Torque):35~40Nm
-

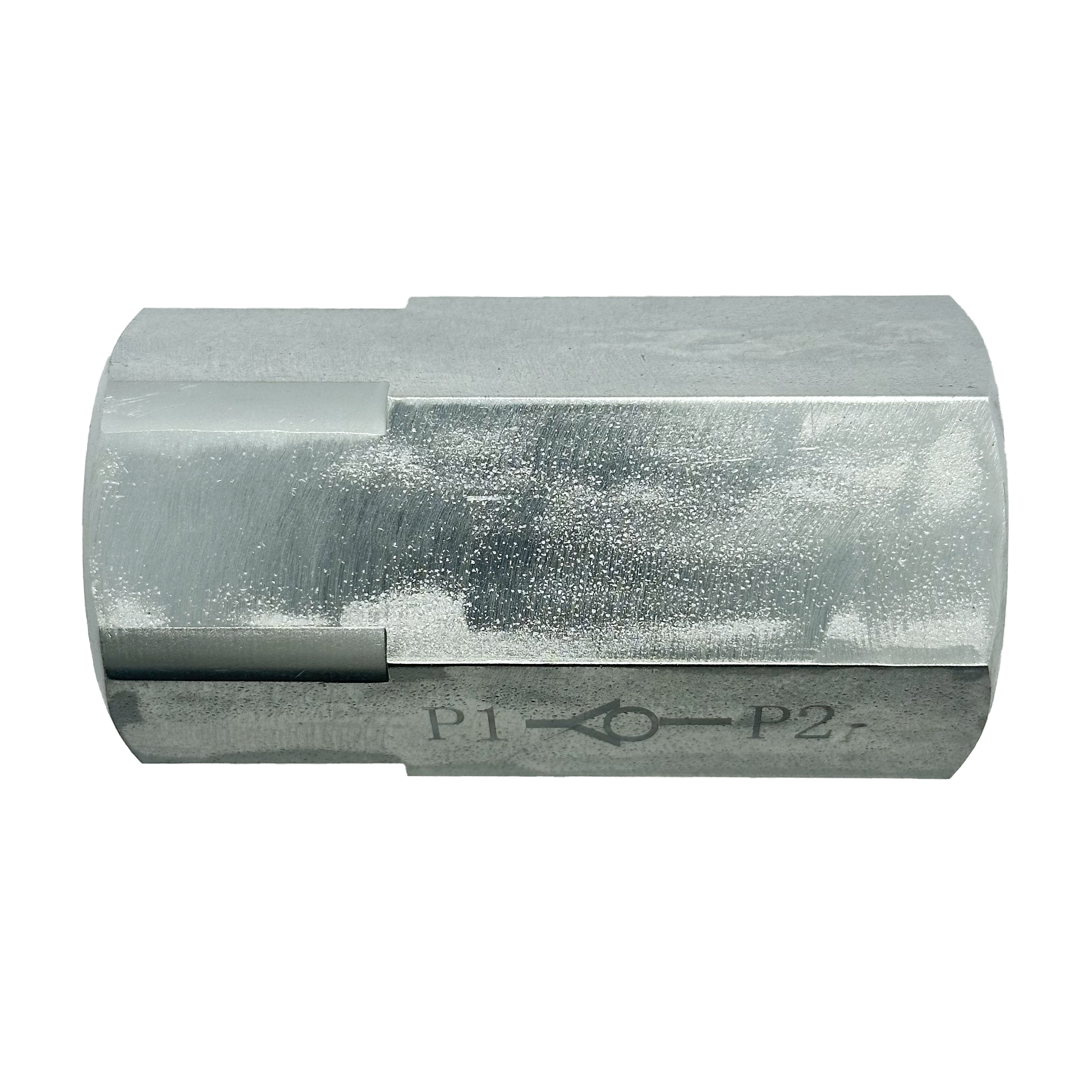

EMDF38-01单向阀 Check valves
技术参数 Specifications更多 +
1.额定压力(Rated pressure):315bar
2.额定流量(Rated flow):300L/min
3.开启压力(Cracking pressure):0.6bar
4.泄漏量(Internal leakage):2 drops/min
5.油液清洁度(Cleaning code):20/18/15(NAS9)
6.工作温度(Temperature range):-20~+100℃
7.安装扭矩(installation torque):90~100Nm
-
EMYF06-18 溢流阀 Relief valves
技术参数 Specifications更多 +
1.额定压力(Rated pressure):245bar
2.额定流量(Rated flow):70L/min
3.开启率(Cracking Rate)≥87%
4.闭合率(Closing Rate)≥85%
5.内泄漏(Internal leakage) ≤10ml/min at 183bar
6.油液清洁度(Cleaning code):20/18/15(NAS9)
7.工作温度(Temperature range):-20~+100℃
8.每转压力变化(Pressure change per turn):65bar
9.安装扭矩(Installation Torque):40~45Nm
10.锁紧扭矩(Nut Tightening Torque):38~43Nm
-
EMYF06-14 溢流阀 Relief valves
技术参数 Specifications更多 +
1.额定压力(Rated pressure):200bar
2.额定流量(Rated flow):30L/min
3.开启率(Cracking Rate)≥90%
4.闭合率(Closing Rate)≥87%
5.内泄漏(Internal leakage) ≤10ml/min at 150bar
6.油液清洁度(Cleaning code):20/18/15(NAS9)
7.工作温度(Temperature range):-20~+100℃
8.每转压力变化(Pressure change per turn):56.5bar
9.安装扭矩(Installation Torque):35~40Nm
10.锁紧扭矩(Nut Tightening Torque):30~34Nm
-
EMYF06-13 溢流阀 Relief valves
技术参数 Specifications更多 +
1.额定压力(Rated pressure):140bar
2.额定流量(Rated flow):50L/min
3.开启率(Cracking Rate)≥94%
4.闭合率(Closing Rate)≥86%
5.内泄漏(Internal leakage)≤10ml/min at 105 bar
6.油液清洁度(Cleaning code):20/18/15(NAS9)
7.工作温度(Temperature range):-20~+100℃
8.每转压力变化(Pressure change per turn):31.7bar
9.安装扭矩(Installation Torque):40~45Nm
10.锁紧扭矩(Nut Tightening Torque):30~34Nm
-
EMYF05-21 溢流阀 Relief valves
技术参数 Specifications更多 +
1.额定压力(Rated pressure):150bar
2.额定流量(Rated flow):30L/min
3.开启率(Cracking Rate)≥95%
4.闭合率(Closing Rate)≥90%
5.内泄漏(Internal leakage) ≤10ml/min at 112bar
6.油液清洁度(Cleaning code):20/18/15(NAS9)
7.工作温度(Temperature range):-20~+100℃
8.每转压力变化(Pressure change per turn):38.9bar
9.安装扭矩(Installation Torque):35~40Nm
10.锁紧扭矩(Nut Tightening Torque):28~34Nm
-
EMYF04-02 溢流阀 Relief valves
技术参数 Specifications更多 +
1.额定压力(Rated pressure):420bar
2.额定流量(Rated flow):30L/min
3.开启率(Cracking Rate)≥90%
4.闭合率(Closing Rate)≥86%
5.内泄漏(Internal leakage) ≤10ml/min at 315bar
6.油液清洁度(Cleaning code):20/18/15(NAS9)
7.工作温度(Temperature range):-20~+100℃
8.每转压力变化(Pressure change per turn):70bar
9.安装扭矩(Installation Torque):35~40Nm
10.锁紧扭矩(Nut Tightening Torque):38~43Nm
-
EMXF16-01 溢流阀 Relief valves
技术参数 Specifications更多 +
1.额定压力 (Rated pressure):175bar
2.额定流量(Rated flow):40L/min
3.开启率(Cracking Rate):≥85%
4.闭合率(Closing Rate):≥80%
5.补油开启压力( Oil make-up Cracking Pressure):0.7bar
6.内泄漏(internal Leakage):≤2ml/min at 131bar
7.油液清洁度(Cleaning code):20/18/15(NAS9)
8.工作温度(Temperature range):-20~+100℃
9.每转压力变化(Pressure change per turn):532bar
10.安装扭矩(Installation Torque):45~50Nm
11.锁紧扭矩(Nut Tightening Torque):35~40Nm
-
EMXF15-10 溢流阀 Relief valves
技术参数 Specifications更多 +
1.额定压力(Rated pressure):200bar
2.额定流量(Rated flow):60L/min
3.开启率(Cracking Rate)≥90%
4.闭合率(Closing Rate)≥85%
5.补油开启压力(Oil make-up Cracking Pressure):0.4 bar
6.内泄漏 (Internal Leakage)≤50ml/min at 150bar
7.油液清洁度(Cleaning code):20/18/15(NAS9)
8.工作温度(Temperature range):-20~+100℃
9.每装压力变化(Pressure change per turn):250bar
10.安装扭矩(Installation Torque):45~50Nm
11.锁紧扭矩(Nut Tightening Torque):30~35Nm
-
EMXF12-10 溢流阀 Relief valves
技术参数 Specifications更多 +
1.额定压力(Rated pressure):200bar
2.额定流量(Rated flow):60L/min
3.开启率(Cracking Rate)≥90%
4.闭合率(Closing Rate)≥85%
5.补油开启压力(Oil make-up Cracking Pressure):0.7bar
6.内泄漏(Internal Leakage)≤3ml/min at 150bar
7.油液清洁度(Cleaning code):20/18/15(NAS9)
8.工作温度(Temperature range):-20~+100℃
9.每转压力变化(Pressure change per turn):115.9bar
10.安装扭矩(Installation Torque):40~45Nm
11.锁紧扭矩(Nut Tightening Torque):10~12Nm
-
EMJF06-02 减压阀 Reducing valves
技术参数 Specifications更多 +
1.最大流量(Flow Max):11L/min
2.最大输入压力(Pressure input Max):350bar
3.减压力(Pressure reducing):33+2bar
4.泄漏量(Internal leakage)≤90ml/min at 200bar
5.油液清洁度(Cleaning code):20/18/15(NAS9)
6.工作温度(Temperature range):-20~+100℃
7.安装扭矩(Installation torque):33~40Nm
-
EMYF05-18 溢流阀 Relief valves
技术参数 Specifications更多 +
1.额定压力(Rated pressure):250bar
2.额定流量(Rated flow):60L/min
3.开启率(Cracking Rate)≥90%
4.闭合率(Closing Rate)≥85%
5.内泄漏(Internal leakage) ≤10ml/min at 187bar
6.油液清洁度(Cleaning code):20/18/15(NAS9)
7.工作温度(Temperature range):-20~+100℃
8.每转压力变化(Pressure change per turn):67bar
9.安装扭矩(Installation Torque):35~40Nm
10.锁紧扭矩(Nut Tightening Torque):10~12Nm
-
EMYF05-15A1 溢流阀 Relief valves
技术参数 Specifications更多 +
1.额定压力(Rated pressure):150bar
2.额定流量(Rated flow):15L/min
3.开启率(Cracking Rate):≥92%
4.闭合率(Closing Rate):≥88%
5.内泄漏(Internal leakage) :≤10ml/min at 112bar
6.油液清洁度(Cleaning code):20/18/15(NAS9)
7.工作温度(Temperature range):-20~+100℃
8.每转压力变化(Pressure change per turn):38.9bar
9.安装扭矩(Installation Torque):35~40Nm
10.锁紧扭矩(Nut Tightening Torque):30~34Nm
-
EMXF12-06 溢流阀 Relief valves
技术参数 Specifications更多 +
1.额定压力(Rated pressure):280bar
2.额定流量(Rated flow):100L/min
3.开启率(Cracking Rate):≥88%
4.闭合率(Closing Rate):≥83%
5.油液清洁度(Cleaning code):20/18/15(NAS9)
6.工作温度(Temperature range):-20~+100℃
7.每转压力变化(Pressure change per turn):313bar
8.安装扭矩(Installation Torque):45~55Nm
9.锁紧扭矩(Nut Tightening Torque):10~12Nm
-
EMQF12-02 压力补偿节流阀 Restriction valves for pressure compensation
技术参数 Specifications更多 +
1.额定压力(Rated pressure):300bar
2.额定输入流量(Rated flow input):60L/min
3.轮出流量调节范围(Output flow regulation range):0~30L/min
4.油液清洁度(Cleaning code):20/18/15(NAS9)
5.工作温度(Temperature range):-20~+100℃
6.安装扭矩(Installation Torque):40~45Nm
-
EMYF04B-02 溢流阀 Relief valves
技术参数 Specifications更多 +
1.额定压力(Rated pressure):200bar
2.额定流量(Rated flow):10L/min
3.开启率(Cracking Rate) ≥90%
4.闭合率(Closing Rate)≥86%
5.补油开启压力(Oil make-up Cracking Pressure):0.05bar
6.内泄漏 (Internal Leakage)≤10ml/min at 150bar
7.油液清洁度(Cleaning Code):20/18/15(NAS9)
8.工作温度(Temperature range):-20~+100℃
9.每转压力变化(Pressure change Per Turn):37.5bar
10.安装扭矩(Installation Torque):35~40Nm
11.锁紧扭矩(Nut Tightening Torque):30~36Nm
-
EMYF04-09-40 溢流阀 Relief valves
技术参数 Specifications更多 +
1.额定压力(Rated pressure):400bar
2.额定流量(Rated flow):23L/min
3.开启率(Cracking Rate)≥90%
4.闭合率(Closing Rate)≥85%
5.内泄漏 (Internal leakage) ≤10ml/min at 300bar
6.油液清洁度(Cleaning code):20/18/15(NAS9)
7.工作温度(Temperature range):-20~+100℃
8.每转压力变化(Pressure change per turn):187bar
9.安装扭矩(Installation Torque):40~45Nm
10.锁紧扭矩(Nut Tightening Torque):10~12Nm
-
EMXF10-02 溢流阀 Relief valves
技术参数 Specifications更多 +
1.额定压力(Rated pressure):50bar
2.额定流量(Rated flow):20L/min
3.开启率(Cracking Rate)≥90%
4.闭合率(Closing Rate)≥80%
5.油液清洁度(Cleaning code):20/18/15(NAS9)
6.工作温度(Temperature range):-20~+100℃
7.每转压力变化(Pressure change per turn):46.4bar
8.安装扭矩(Installation Torque):38~43Nm
9.锁紧扭矩(Nut Tightening Torque):23~28Nm
-
EMJF06-09 减压阀 Reducing valves
技术参数 Specifications更多 +
1.最大流量(Flow Max):11L/min
2.最大输入压力(Pressure input Max):315bar
3.减压力(Pressure reducing):37+2bar
4.泄漏量(Internal leakage):≤90ml/min at 200bar
5.油液清洁度(Cleaning code):20/18/15(NAS9)
6.工作温度(Temperature range):-20~+100℃
7.安装扭矩(Installation torque):33~40Nm
-
EMXF15-07 溢流阀 Relief valves
技术参数 Specifications更多 +
1.额定压力(Rated pressure):210bar
2.额定流量(Rated flow):60L/min
3.开启率(Cracking Rate)≥88%
4.闭合率(Closing Rate)≥82%
5.油液清洁度(Cleaning code):20/18/15(NAS9)
6.工作温度(Temperature range):-20~+100℃
7.每转压力变化(Pressure change per turn):88.9bar
8.安装扭矩(Installation Torque):40~45Nm
9.锁紧扭矩(Nut Tightening Torque):32~36Nm
